The EcoFlow ZMM100-Combo3-UK is a comprehensive modular power solution designed for off-grid living, RVs, tiny homes, and emergency backup scenarios. This all-in-one system integrates multiple components to provide a seamless and efficient energy experience.
Key Features
Inverter-Charger:
Pure Sine Wave Output: Delivers 3600W continuous power with a surge capacity of 7200W, ensuring compatibility with sensitive electronics.
AC Output: 120V, 20A, suitable for standard appliances.
AC Input: Supports up to 3000W from shore power, 1000W from alternator, and 1800W from EcoFlow's smart generator.
MPPT Solar Charge Controllers:
Equipped with two Maximum Power Point Tracking (MPPT) solar charge controllers, allowing for efficient solar energy harvesting.
Battery Charger with MPPT:
Integrates a battery charger with MPPT technology, optimizing charging efficiency.
DC-DC Step-Down Converter:
Provides 12V and 24V DC outputs, catering to various low-voltage applications.
Connectivity:
Wi-Fi & Bluetooth: Enables remote monitoring and control via the EcoFlow app.
Display Console: Offers real-time insights into power usage and system status.
Charging Methods:
The ZMM100-Combo3-UK supports multiple charging options:
Solar: Up to 4800W input, ideal for off-grid solar setups.
Alternator: 1000W input, suitable for charging while driving.
Shore Power: 3000W input, for traditional AC charging.
Smart Generator: 1800W input, providing backup charging during extended off-grid periods.
Included Components:

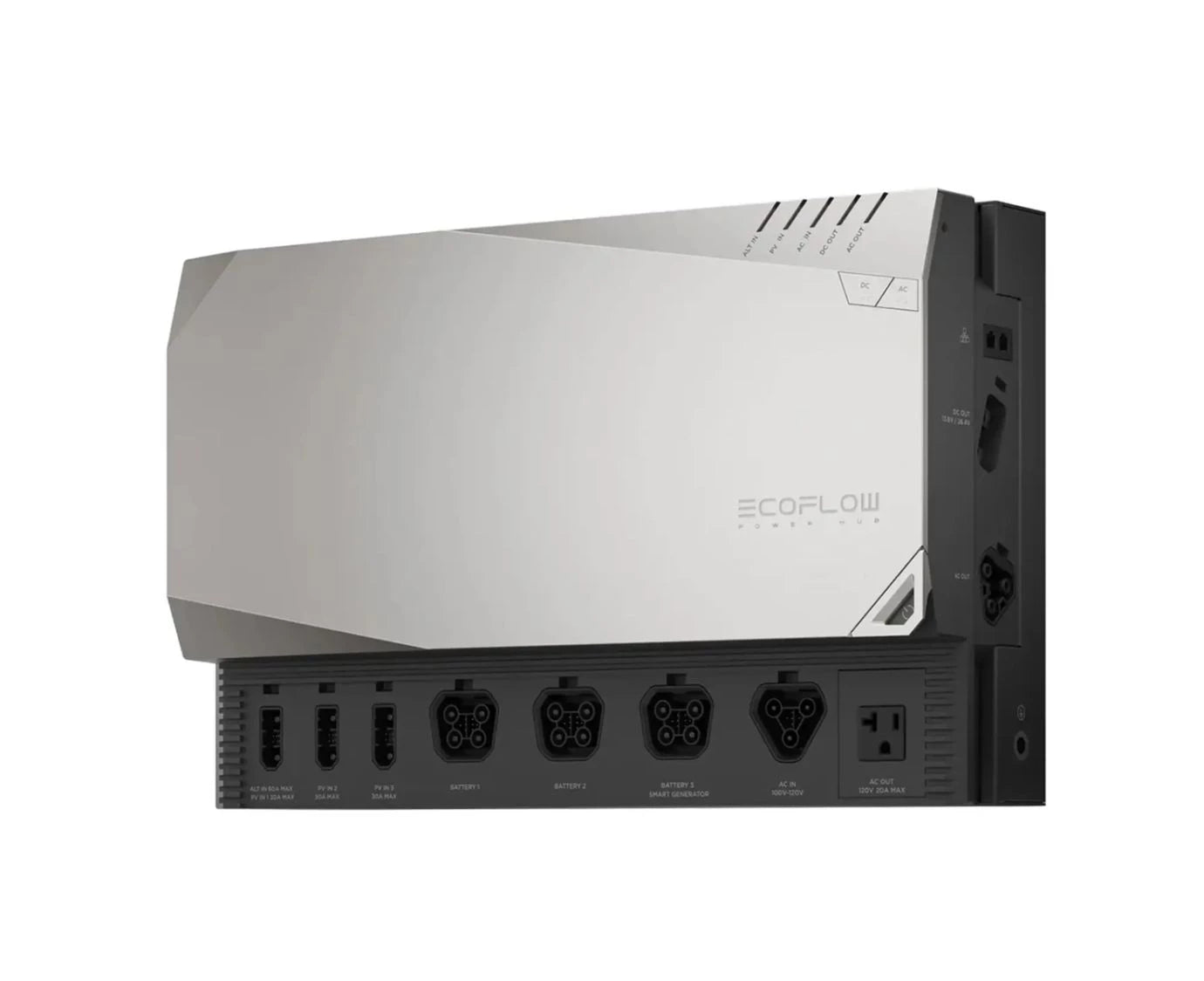

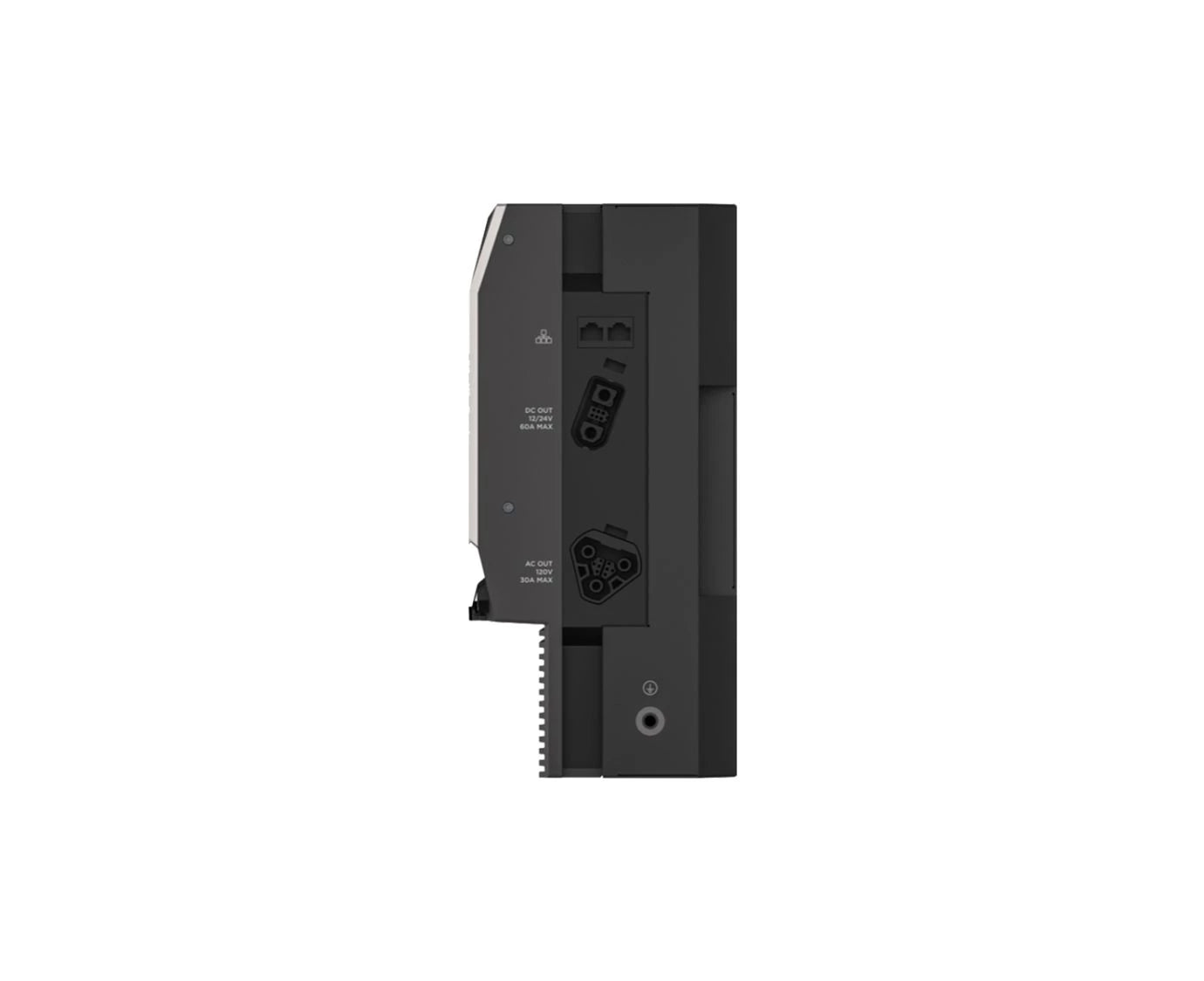

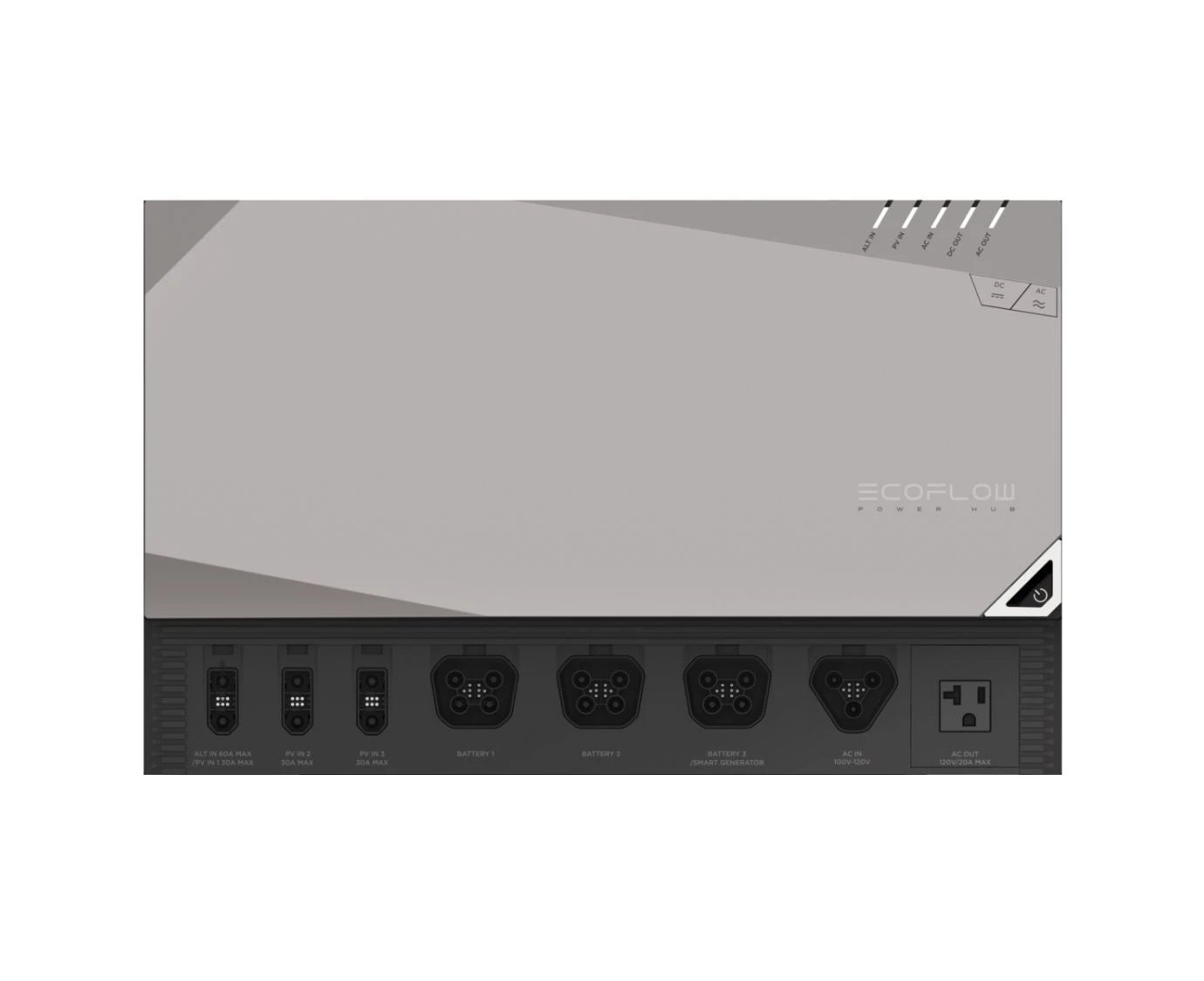

Power Hub: The central unit integrating all functionalities.
Battery Storage: Options ranging from 2kWh to 15kWh, depending on the selected configuration.
Cable Pack: All necessary cables for installation.
Distribution Panel (Optional): For advanced setups requiring multiple DC and AC outputs.
Console (Optional): For enhanced monitoring and control.
Specifications:
Power hub
Wi-Fi: Supported (2.4G, <120m)
Bluetooth: Supported ( <15m)
Mobile App: Supported
AC Main Output/Frequency:
Pure Sine Wave, 3600W (Surge 7200W), 230V, 50Hz
DC Main Output:
13.6V/70A 1000W Max: 26.4V/60A. 1600W Max
AC Main Input:
X-Stream Fast Charging 3000W Max, 15A Max
AC Main Input Voltage/Frequency: 230V, 50Hz
Operating Temperature:
-25°C - 60°C (-13°F - 140°F)
Storage Temperature:
-25°C - 60°C (-13°F - 140°F)
2kWh LFP Battery
Protection Level: IP54

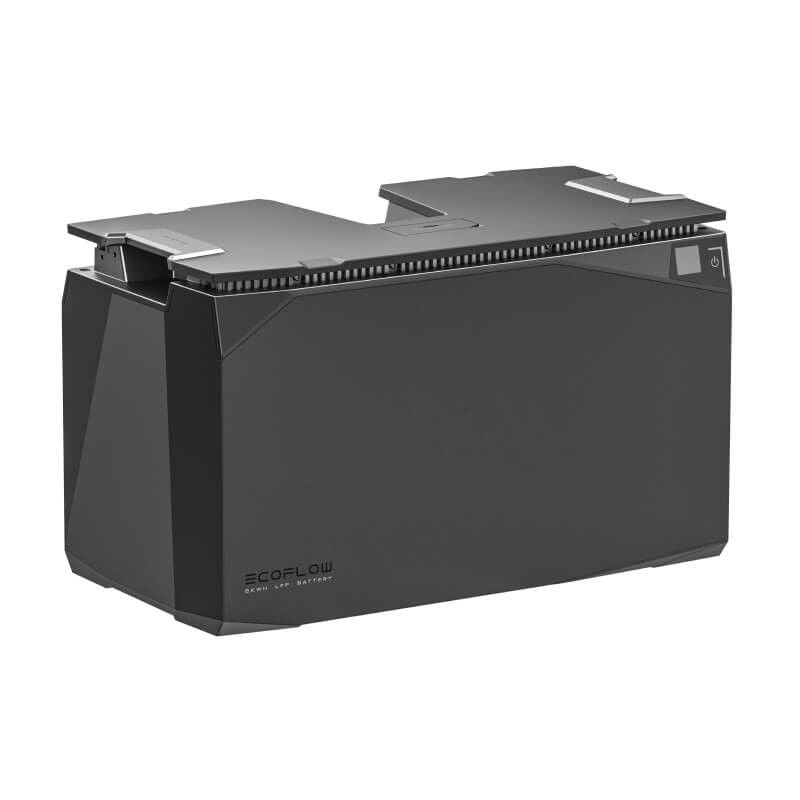

5kWh LFP Battery
Protection Level: IP54

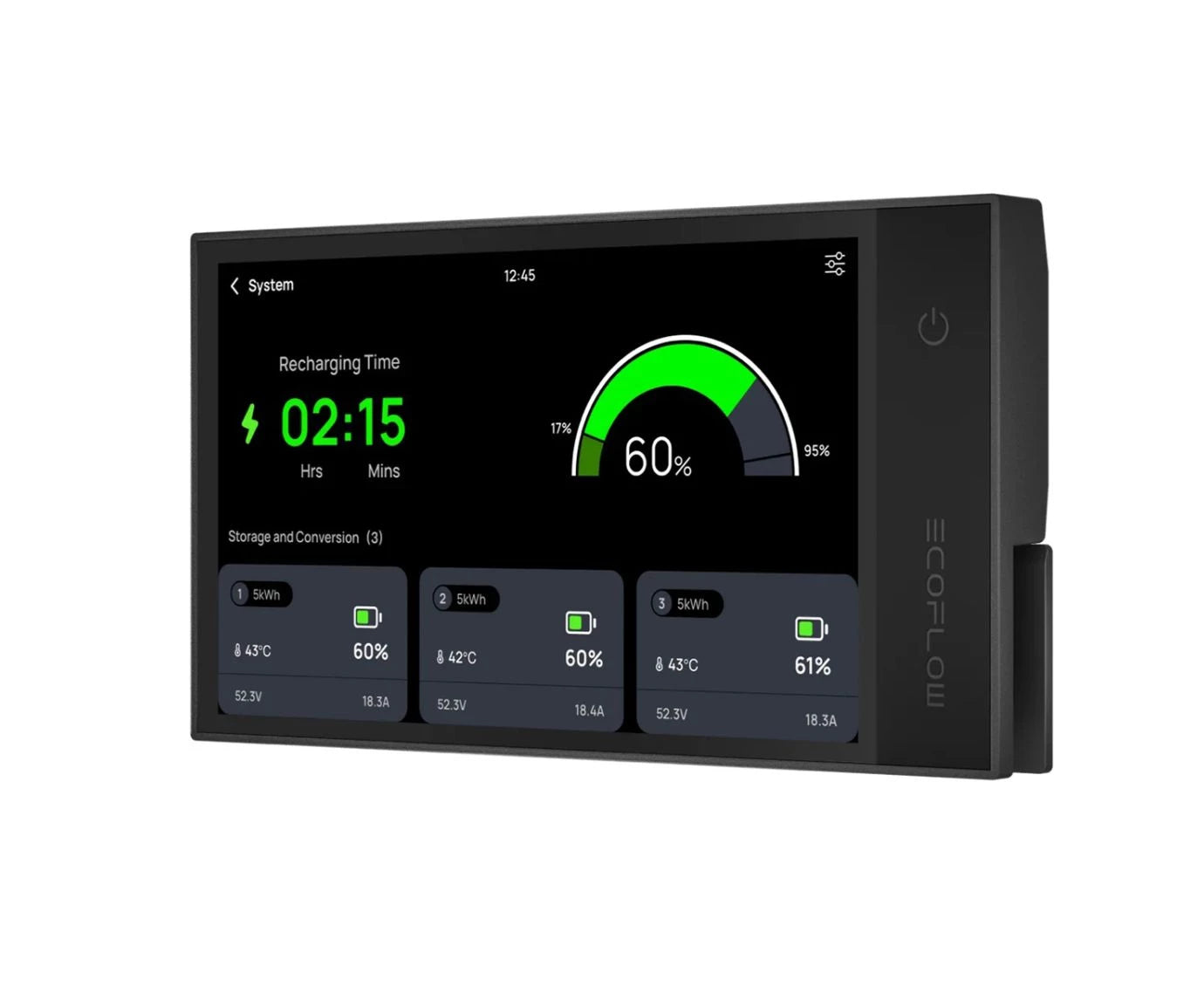

Power Kit Console
Touch Screen (Diagonal Measurement)
7 Inch (6x3.4in) (Width x Height)
Power Supply Voltage
12 VDC
Operating Temperature (F)
-4°F-140°F
Tests and Certifications
UL Standard, FCC,ICES,CE,UKCA,E-Mark,RCM,TELEC,KCC
AC/DC Smart Distribution Panel:
AC Main Input
16A Max. 230V, 3600W
DC Main Input
70A Max
AC Output
6 AC Positions, 10A Max Each
DC Output
12 Fused DC Positions (6 Positions Controllable via Power Kit Console & App)
Operating Temperature (F)
-13°F-140°F
Dimensions
8.3x13.9x3.9in (Height x Width x Depth)
Net Weight(lbs)
5.7lbs
Protection Level
IP21
Tests and Certifications
UL Standard, FCC,PSE
Power Hub 5KVA
Communication: Wi-Fi(2.4G, 5G), Bluetooth
GPS: Supported
IP Rating: IP 20
Wi-Fi: 2.4G, 5G
DC Output(12V/24V)
13.6V⎓100A Max, 1360W Max; 26.4V⎓60A Max, 1584W Max
48V DC Output / Smart Generator (48V)
51.2V⎓55A Max
EF BUS Output (x2)
12V⎓Total 1.2A Max
Total Output: 8752W Max
Alternator Input/PV Input 1
13–60V⎓100A Max, 4000W Max
Alternator Input/PV Input 2/3
13–60V⎓30A Max, 1600W Max
Battery 3 / Smart Generator
40-57.6V⎓100A Max
48V DC Output / Smart Generator (48V)
40-57.6V⎓70A Max
Charge
40-57.6V⎓100A Max per port, total 270A Max
Discharge
40-57.6V⎓100A Max per port, total 181A Max
Operating Temperature
-25°C to 60°C (-13°F to 140°F), derating>40°C (104°F)
Operating Humidity
0%-95% RH (non-condensing)
Altitude
<2,000 m (6,562ft)
Discharge Temperature
-25°C to 60°C (-13°F to 140°F), derating>40°C (104°F)
Storage Temperature
-25°C to 70°C (-13F to 158°F)
