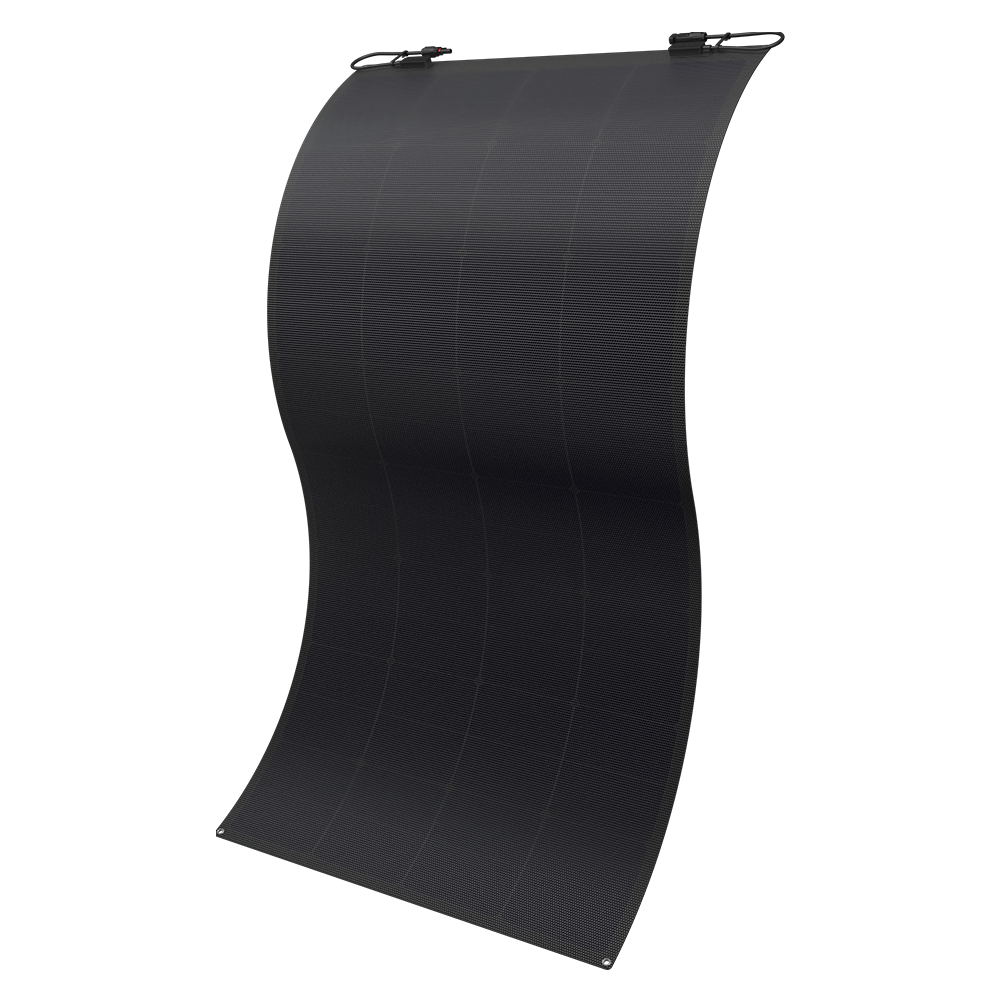

The DrkHors 100W HPBC Flexible Solar Panel is designed for installations where lightweight construction and flexibility are important. Featuring HPBC monocrystalline solar cells, a frameless ETFE construction, and a flexible design that bends approximately 30 degrees, it is suitable for applications such as boats, vans, and curved roofs.
Key Features and Benefits
-
100W Rated Power: Provides solar power for compatible installations.
-
HPBC Technology: Features HPBC monocrystalline solar cells.
-
26.5% Cell Efficiency: Delivers the stated cell efficiency in the datasheet.
-
Flexible Design: Bends approximately 30 degrees for suitable curved surfaces.
-
Lightweight Construction: Weighs only 1.75kg for easier handling and installation.
-
ETFE Protection: Features an ETFE film and frameless construction.
-
IP68 Protection: Junction box carries an IP68 rating.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model / SKU |
DH-100W-HPBC-Flex |
|
Panel Type |
Flexible |
|
Technology |
HPBC |
|
Rated Power |
100W |
|
Cell Efficiency |
26.5% |
|
Dimensions |
990 × 590 × 3mm |
|
Weight |
1.75kg |
|
Open Circuit Voltage (Voc) |
21.5V |
|
Voltage at Max Power (Vmp) |
18.6V |
|
Short Circuit Current (Isc) |
6.07A |
|
Current at Max Power (Imp) |
5.37A |
|
Junction Box IP Rating |
IP68 |
|
Operating Temperature |
-40°C to +85°C |
|
Product Warranty |
5 years |
|
Construction |
ETFE film, frameless |
|
Cell Type |
182mm HPBC monocrystalline |
|
Number of Cells |
30 |
