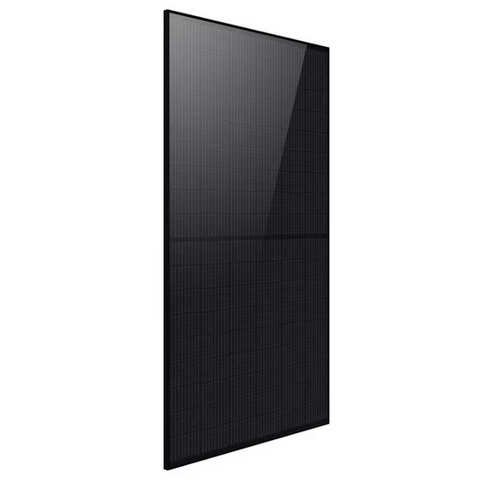

The DrkHors 250W HPBC Rigid Solar Panel is designed for dependable solar installations where a solid panel construction is preferred. Featuring HPBC monocrystalline cells, a 30mm aluminium frame, and 3.2mm tempered glass, it combines a rigid structure with 26.5% cell efficiency. Its compact dimensions make it suitable for applications such as vans and other compatible solar setups.
Key Features and Benefits
-
250W Rated Power: Provides solar energy for compatible systems.
-
HPBC Technology: Uses HPBC monocrystalline solar cells.
-
26.5% Cell Efficiency: Delivers the stated cell efficiency in the datasheet.
-
Rigid Construction: Features a 30mm aluminium frame and 3.2mm tempered glass.
-
Compact Design: Measures 1450 × 770mm for suitable installation spaces.
-
10-Year Warranty: Includes a 10-year product warranty.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model / SKU |
DH-250W-HPBC-Rigid |
|
Panel Type |
Rigid |
|
Technology |
HPBC |
|
Rated Power |
250W |
|
Cell Efficiency |
26.5% |
|
Dimensions |
1450 × 770 × 30mm |
|
Weight |
14.8kg |
|
Open Circuit Voltage (Voc) |
21.6V |
|
Voltage at Max Power (Vmp) |
18.7V |
|
Short Circuit Current (Isc) |
15.13A |
|
Current at Max Power (Imp) |
13.36A |
|
Maximum System Voltage |
1500V |
|
Junction Box IP Rating |
IP68 |
|
Operating Temperature |
-40°C to +85°C |
|
Product Warranty |
10 years |
|
Construction |
30mm aluminium frame, 3.2mm tempered glass |
|
Number of Cells |
60 |
|
Static Load (Front / Rear) |
5400 / 2400Pa |
Additional Information :
Durable Protection Against Hail and Ice Impacts
Built with a 3.2mm full tempered glass and backsheet structure, this rigid solar panel is designed to provide reliable protection against harsh weather conditions.
Tested according to the IEC 61215 standard, the panel is designed to withstand impacts from 25mm-diameter ice balls traveling at speeds of up to 23m/s.
This impact resistance makes it a dependable choice for outdoor solar installations, offering added durability and protection against hailstorms and icy weather conditions, including Kuwait's winter season.
