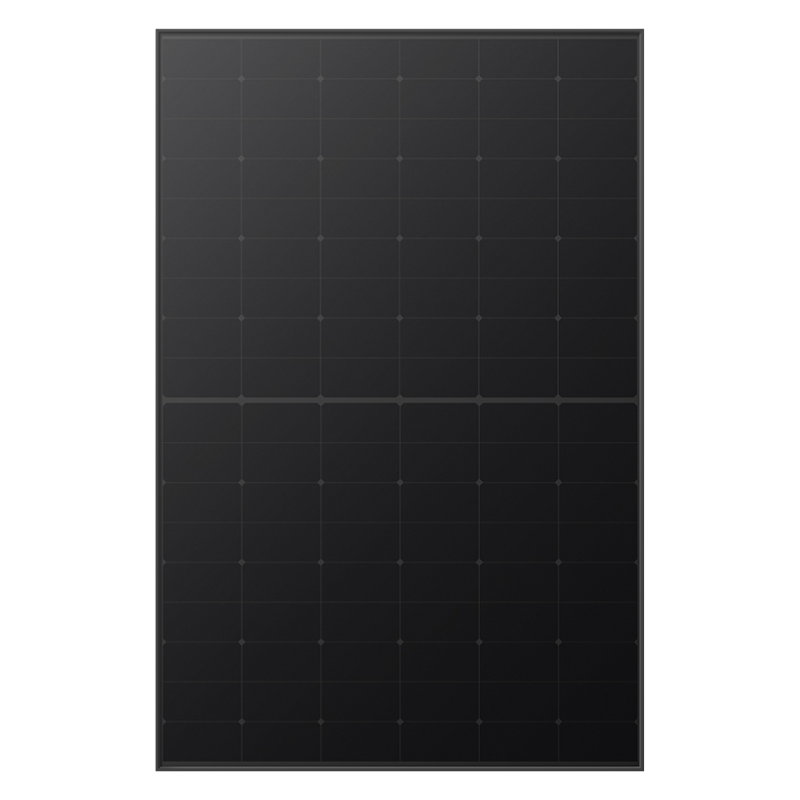

The DrkHors 500W HPBC Rigid Solar Panel is designed for high-power residential and commercial solar applications. Featuring HPBC monocrystalline cell technology with 26.5% cell efficiency, it delivers a 500W rated output in a durable rigid construction. Its 30mm aluminium frame and 3.2mm tempered glass provide a solid panel structure, while its stated shading tolerance makes it suitable for installations where partial shading may occur.
Key Features and Benefits
-
500W Rated Power: Designed for higher-power solar installations.
-
HPBC Cell Technology: Uses HPBC monocrystalline solar cells.
-
26.5% Cell Efficiency: Delivers the stated cell efficiency in the datasheet.
-
Shading Tolerance: Designed with good shading tolerance, as stated in the datasheet.
-
Durable Construction: Features a 30mm aluminium frame and 3.2mm tempered glass.
-
High System Voltage: Supports a maximum system voltage of 1500V.
-
15-Year Warranty: Includes a 15-year product warranty.
Technical Specifications
|
Specification |
Details |
|---|---|
|
Model / SKU |
DH-500W-HPBC-Rigid |
|
Panel Type |
Rigid |
|
Technology |
HPBC |
|
Rated Power |
500W |
|
Cell Efficiency |
26.5% |
|
Dimensions |
1909 × 1134 × 30mm |
|
Weight |
28.7kg |
|
Open Circuit Voltage (Voc) |
43.3V |
|
Voltage at Max Power (Vmp) |
37.2V |
|
Short Circuit Current (Isc) |
15.09A |
|
Current at Max Power (Imp) |
13.44A |
|
Maximum System Voltage |
1500V |
|
Junction Box IP Rating |
IP68 |
|
Operating Temperature |
-40°C to +85°C |
|
Product Warranty |
15 years |
|
Construction |
30mm aluminium frame, 3.2mm tempered glass |
|
Number of Cells |
120 |
|
Static Load (Front / Rear) |
5400 / 2400Pa |
Additional Information :
Durable Protection Against Hail and Ice Impacts
Built with a 3.2mm full tempered glass and backsheet structure, this rigid solar panel is designed to provide reliable protection against harsh weather conditions.
Tested according to the IEC 61215 standard, the panel is designed to withstand impacts from 25mm-diameter ice balls traveling at speeds of up to 23m/s.
This impact resistance makes it a dependable choice for outdoor solar installations, offering added durability and protection against hailstorms and icy weather conditions, including Kuwait's winter season.
