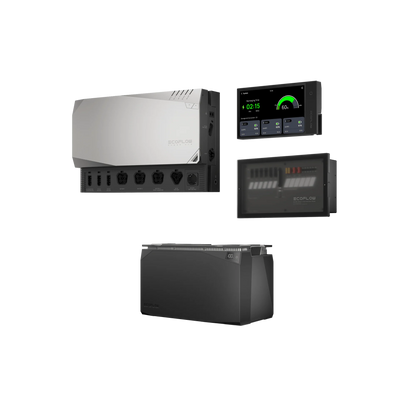

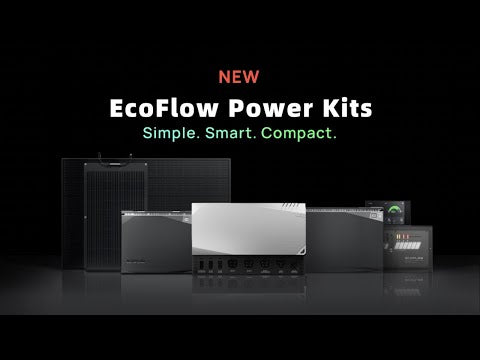

EcoFlow 5kWh Power Kit System (5000Wh / 3600W) Surge 7200W

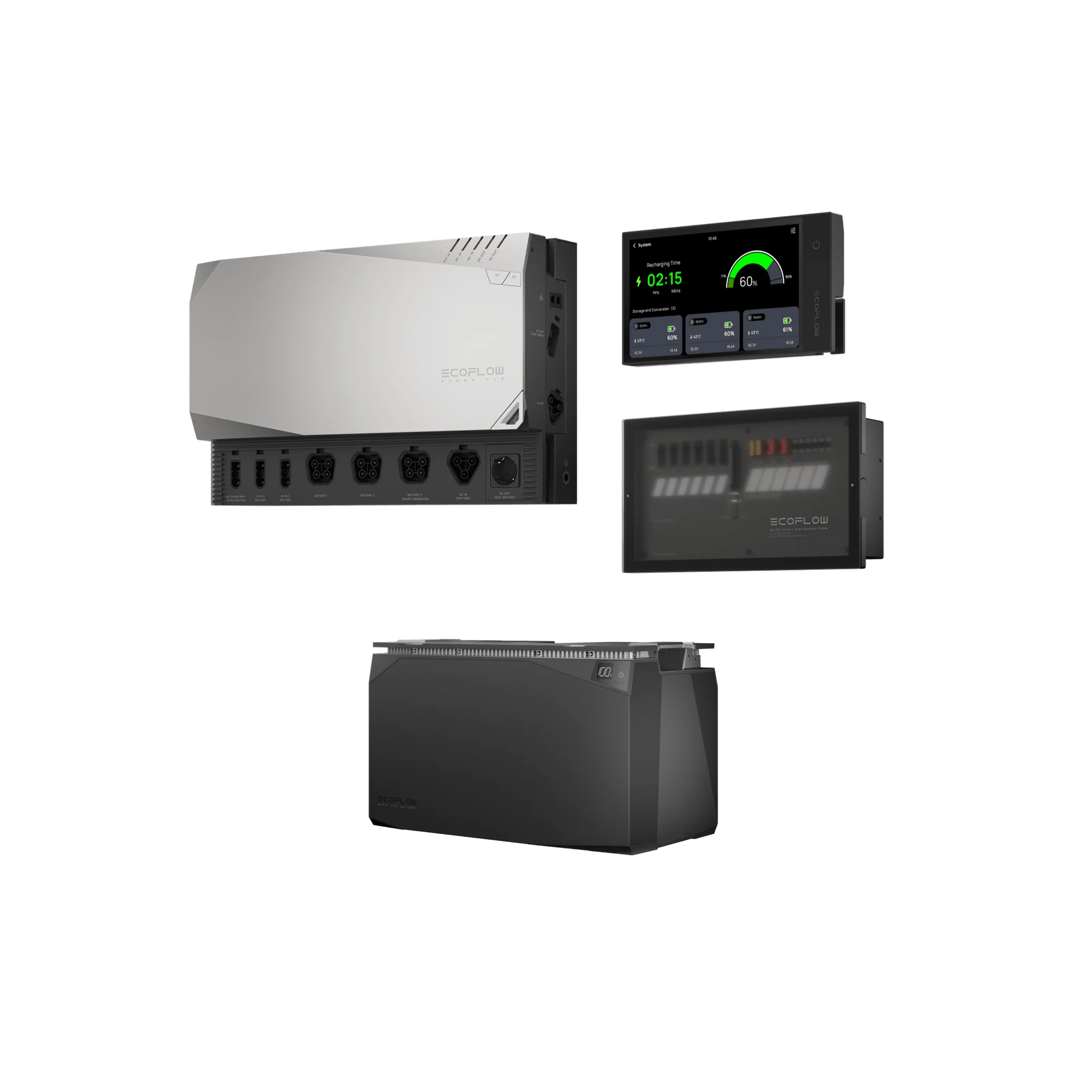

Bundle Contains:

- EcoFlow Power HUB 3600W (Surge 7200W)

Inverter-Charger:

Pure Sine Wave Output: Delivers 3600W continuous power with a surge capacity of 7200W, ensuring compatibility with sensitive electronics.

AC Output: 120V, 20A, suitable for standard appliances.

AC Input: Supports up to 3000W from shore power, 1000W from alternator, and 1800W from EcoFlow's smart generator.

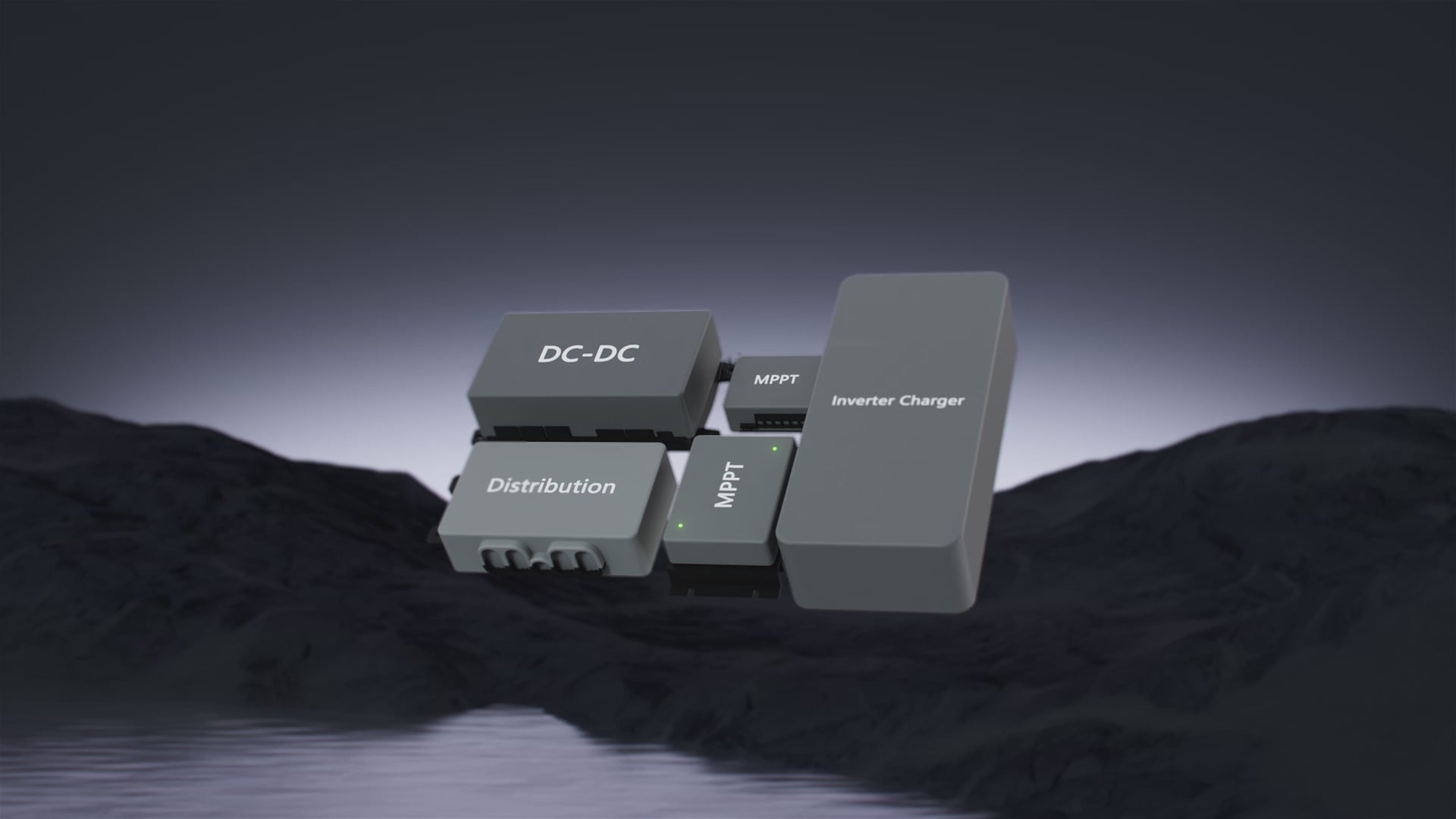

MPPT Solar Charge Controllers:

Equipped with two Maximum Power Point Tracking (MPPT) solar charge controllers, allowing for efficient solar energy harvesting.

Battery Charger with MPPT:

Integrates a battery charger with MPPT technology, optimizing charging efficiency.

DC-DC Step-Down Converter:

Provides 12V and 24V DC outputs, catering to various low-voltage applications.

Connectivity:

Wi-Fi & Bluetooth: Enables remote monitoring and control via the EcoFlow app.

Display Console: Offers real-time insights into power usage and system status.

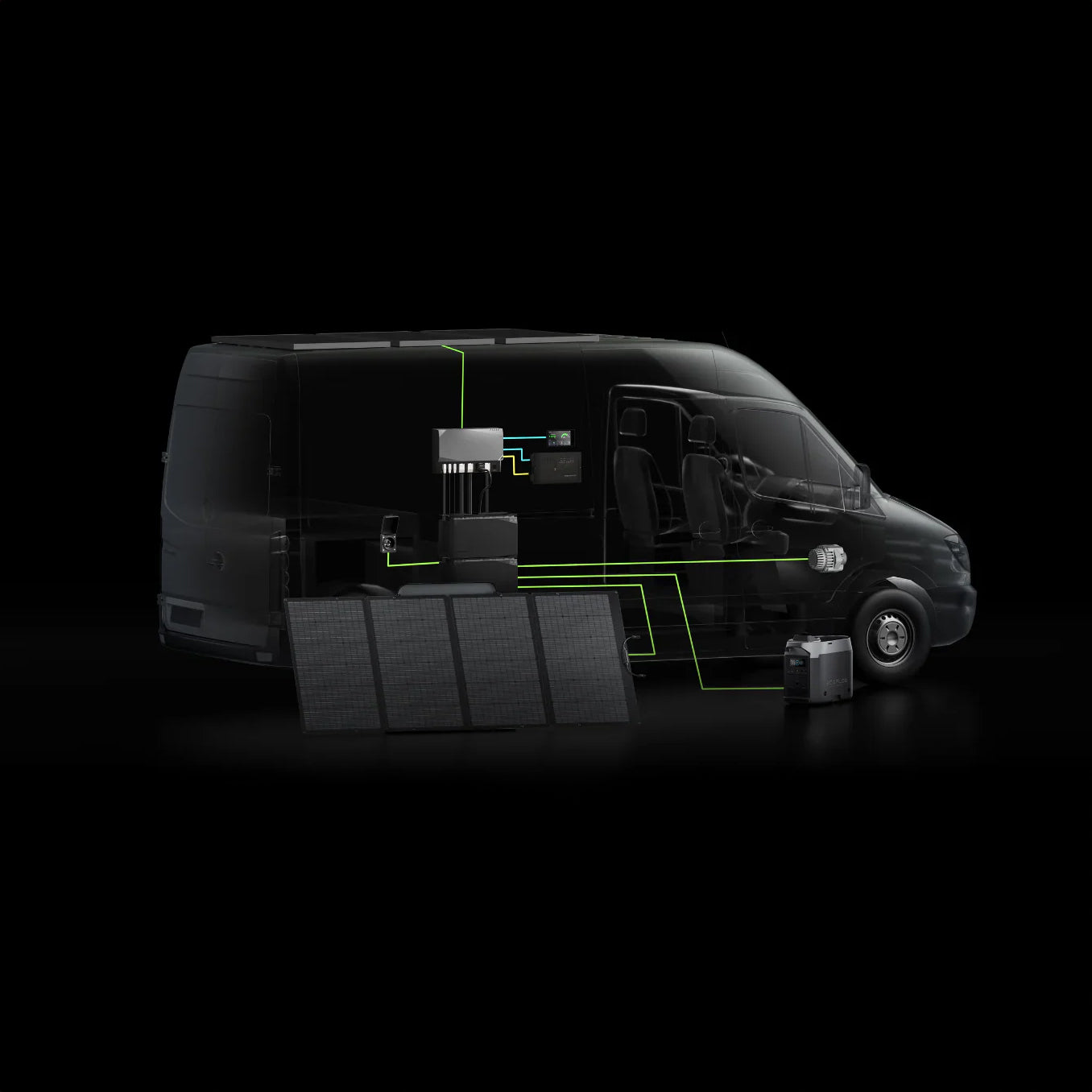

Charging Methods:

The ZMM100-Combo3-UK supports multiple charging options:

Solar: Up to 4800W input, ideal for off-grid solar setups.

Alternator: 1000W input, suitable for charging while driving.

Shore Power: 3000W input, for traditional AC charging.

Smart Generator: 1800W input, providing backup charging during extended off-grid periods.

- EcoFlow 5kWh LFP Battery (5000Wh)

5kWh Storage Expands to 15kWh with additional batteries

Lithium Iron Phosphate Battery

Retains 80% capacity at 3500 charge cycles

Auto heating for use down to -4°F

Advanced Battery Management System (BMS)

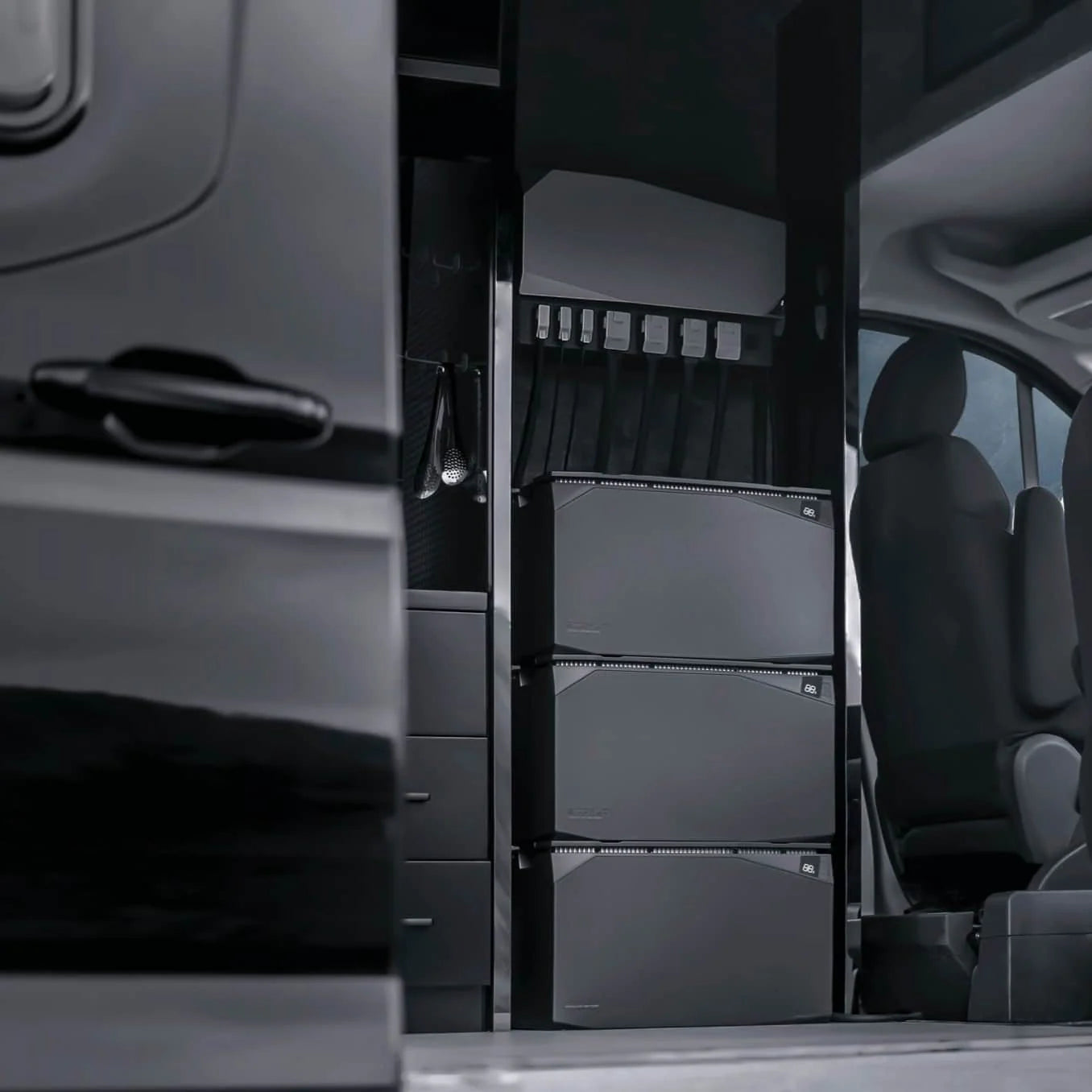

Space saving—stack 3 batteries

Specs:

Rated Watts: 3600 Watts

Surge Watts: 7200 Watts

Rated Amps: 30 Amps

Voltage: 48 Volts

Battery type: LiFePO4

Battery capacity in Wh: 100 Ah / 5120 Wh

Capacity: 100 Ah / 5120 Wh

Voltage: 51.2 V

Recommended charging current: Max 80A

Maximum charging current: 80A

Dimensions: 50 x 26 x 30cm
