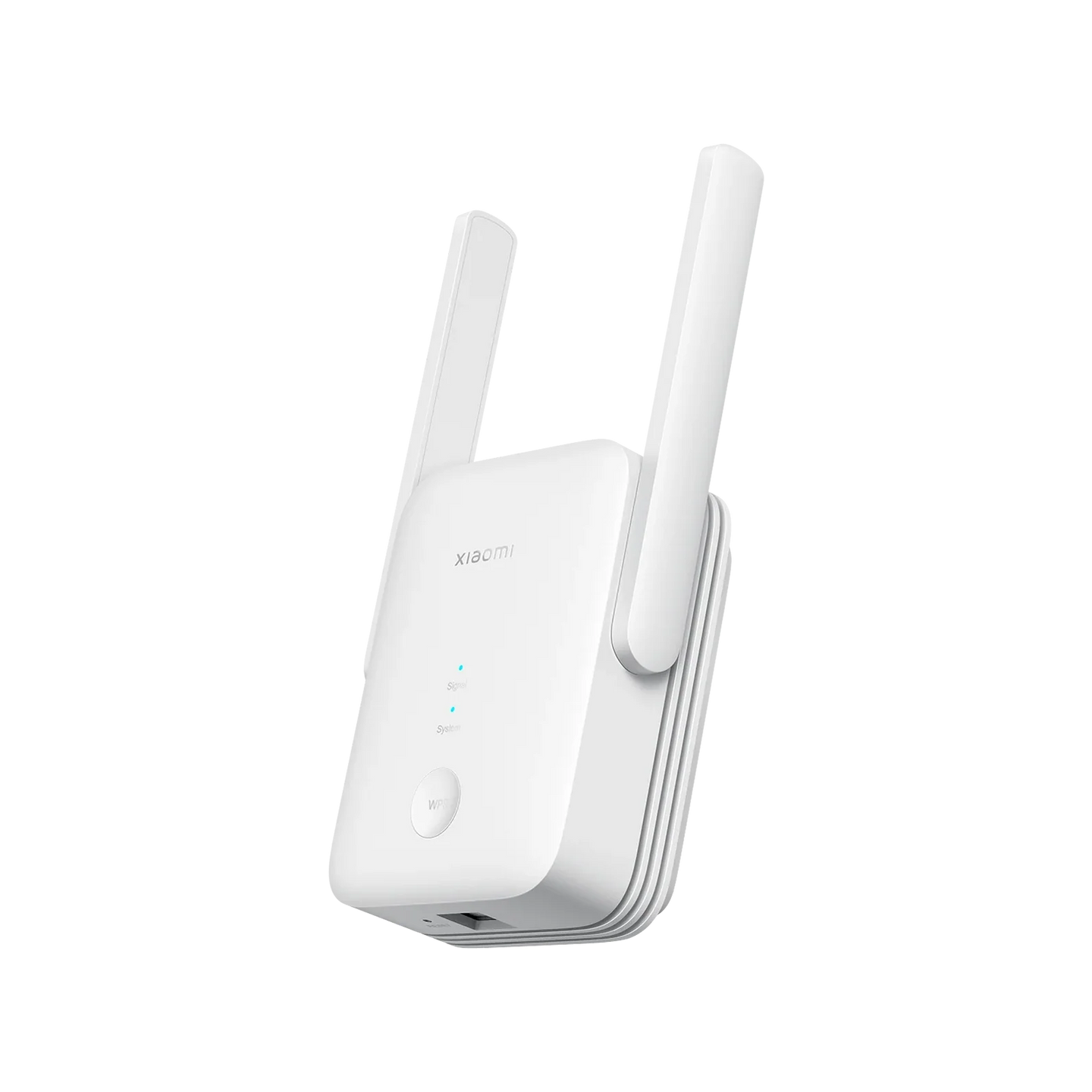

Xiaomi Wi-Fi Range Extender AX1500 EU

Boost your home or office network with the Xiaomi Wi-Fi Range Extender AX1500 (EU). Designed to expand coverage and eliminate dead zones, this powerful extender delivers fast and stable Wi-Fi connections across large spaces. With support for Wi-Fi 6 and easy setup via the Xiaomi Home app, enjoy seamless internet connectivity for all your devices. Compact, efficient, and reliable, it’s the perfect solution for lag-free streaming, gaming, and browsing.

Key Features:

Wi-Fi 6 Support: Ultra-fast speeds and efficient network performance.

AX1500 Dual-Band: Expand coverage with 2.4GHz & 5GHz simultaneous connections.

Eliminate Dead Zones: Boost Wi-Fi coverage in large homes and offices.

Easy Setup: Configure quickly via the Xiaomi Home app.

Compact & Plug-In Design: Fits easily into any outlet without obstructing space.

Stable & Reliable Connection: Smooth streaming, gaming, and browsing.

Secure Network: Advanced encryption keeps your Wi-Fi safe.

Specifications:

Dimensions 84 × 82 × 168mm

Hardware Configuration:

2.4GHz Wi-Fi

2×2 (supports up to IEEE 802.11n protocol with a theoretical max rate of 300Mbps)

5GHz Wi-Fi

2×2 (supports up to IEEE 802.11ax protocol with a theoretical maximum rate of 1201Mbps)

Antenna 2 high-gain antennas

Heat Dissipation Natural heat dissipation

Network Port 1 × 10/100/1000Mbps LAN port

LED Indicator

System indicator, Signal indicator

System Reset Button x1

WPS/Mesh Networking Button x1

Protocol Standard

IEEE 802.11 a/b/g/n/ac/ax, IEEE 802.3/3u/3ab

Wireless Specifications:

Dual-band 2.4GHz, 5GHz

Modulation:

11b: DSSS: DBPSK (1Mbps), DQPSK (2Mbps), CCK (5.5/11Mbps)

11a/g: OFDM: BPSK (6/9Mbps), QPSK (12/18Mbps), 16QAM (24/36Mbps), 64QAM (48/54Mbps)

11n: MIMO-OFDM:BPSK,QPSK,16QAM,64QAM Data rate: MCS0-MCS15

11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM

11ax: MIMO-OFDMA: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM

Software Specifications

Working Mode: Range Extender mode, Mesh mode, Access Point (AP) mode

Wi-Fi Encryption: WPA-PSK/WPA2-PSK/WPA3-SAE, SSID hidden

Management Applications: Xiaomi Home app (Android, iOS)

Working Environment:

Working Environment Temperature 0 to 40°C

Operating Humidity 10% to 90% RH (non-condensing)

Storage Temperature -40°C to 70°C

Storage Humidity 5% to 90% RH (non-condensing)
